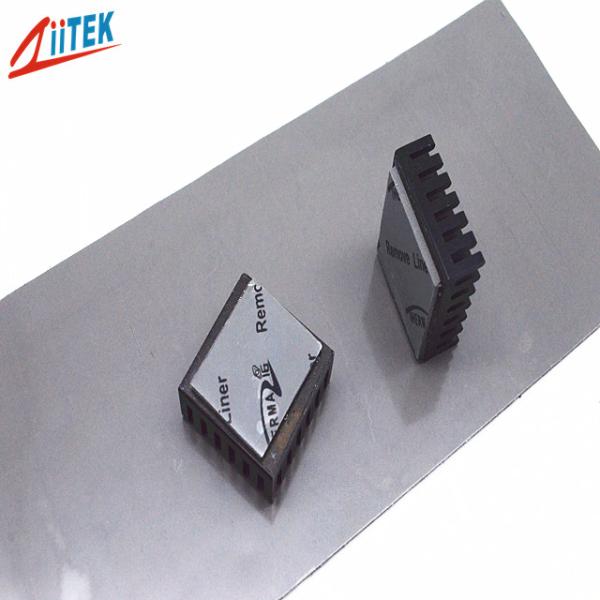

3.0W Silicone Thermal Gap Pad For Network Communication Products

  • 1
  • 2

Brand Name : ZIITEK

Model Number : TIF500-30-11U

Certification : UL and RoHs

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10000/day

Delivery Time : 3-5work days

Packaging Details : 1000pcs/bag

Products name : 3.0W Silicone Thermal Gap Pad For Network Communication Products

Thickness : 0.25mm~5.0mmT

Application : Network Communication Products

Thermal conductivity& Compostion : 3.0W/m-K

Continuos Use Temp : -40℃ to 200℃

Keywords : Thermal gap pad

Specific Gravity : 3.1 g/cc

Hardness : 35 Shore 00

Color : Dark Gray

Construction : Ceramic filled silicone elastomer

Contact Now

3.0W Silicone Thermal Gap Pad For Network Communication Products

TIF®500-30-11U Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.

Features:


> Good thermal conductivity 3.0W/m-K
> Ultra-soft and highly conformable
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance


Applications:

> Cooling components to the chassis of frame
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems

Typical Properties of TIF®500-30-11U Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.1 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness 65 Shore 00 35 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL94 (E331100)
Thermal conductivity 3.0 W/m-K ASTM D5470
3.0 W/m-K ISO22007

Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mm×406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
3.0W Silicone Thermal Gap Pad For Network Communication Products
Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek Technology Company is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Ziitek Technology offers prompt and flexible services. Our thermal conductive materials are widely used in the fields of new energy, electronic appliances, transportation, industry, healthcare, communication, etc. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, which indicate our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability.

Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
